2017-22 F Series DASH Vent Adapter For 1992-97 F series Interior Swap

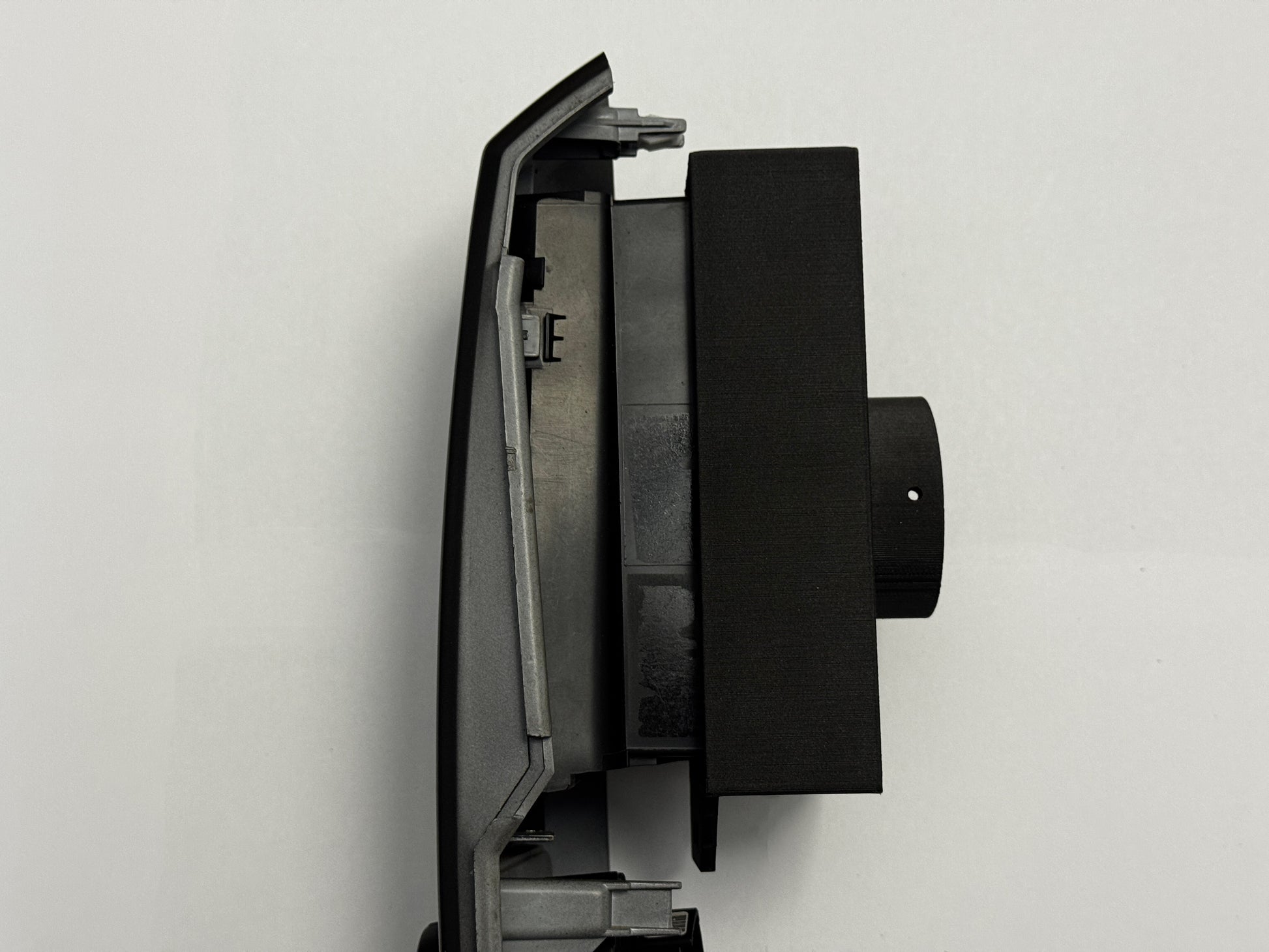

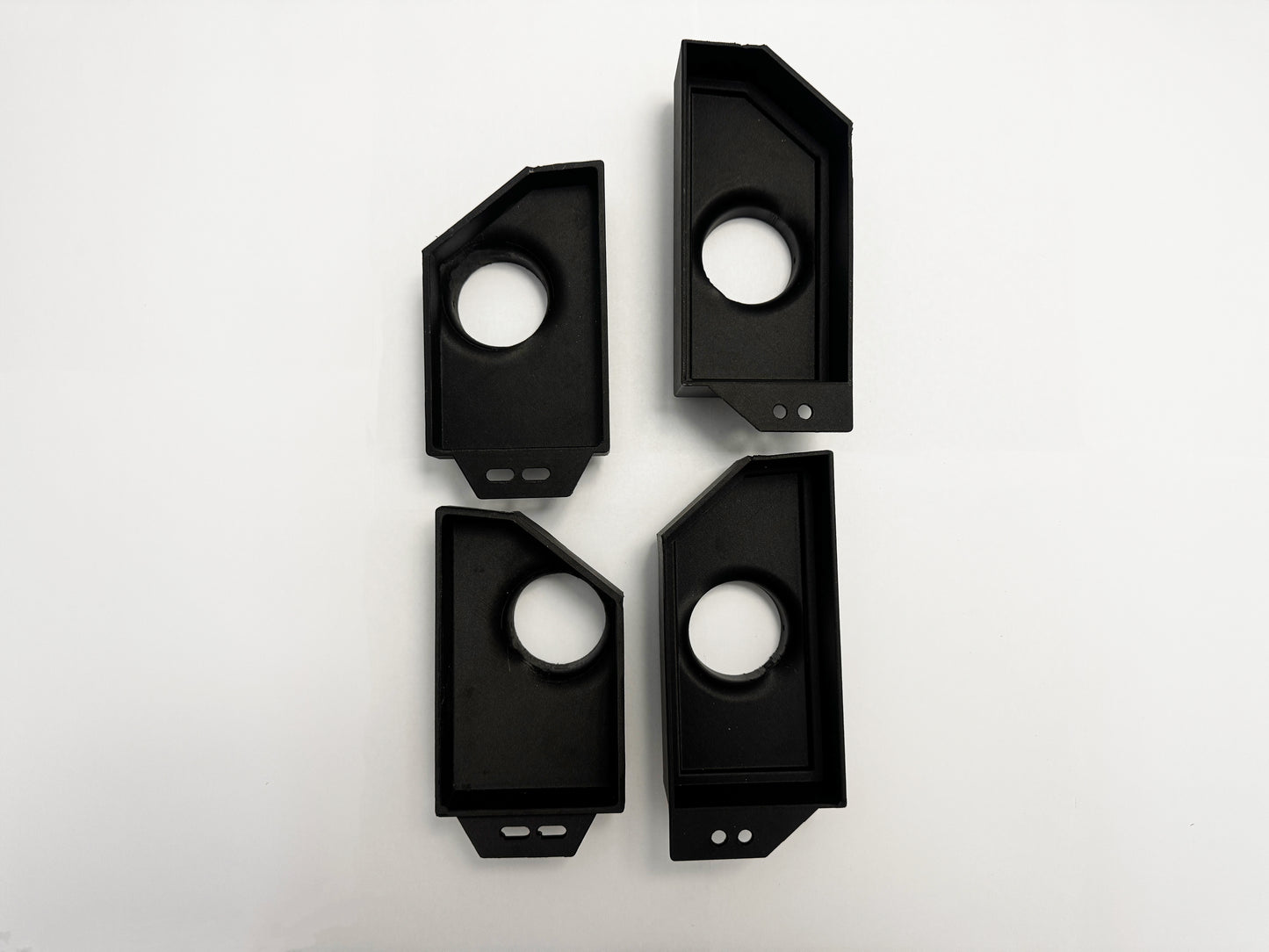

The dash vent adapters are crucial to achieve an OEM like finish for your dashboard swap. Typically on any truck that has air conditioning, when you shut your vent, it seals off that specific vent and does not allow any air to escape through the back side of the vent when not in use. These vent adapters allow the vents to be shut, and the air coming from the blower motor to be completely sealed off like a factory system. They are installed using the original mounting holes for the newer F-Series dashboard, and reuse the same hardware.

The components are made of PET-CF, to ensure its reliability and high temperature resistance, perfectly suited for an AC system.

This does not include any mounting hardware, as it was designed to reuse the factory mounting hardware.

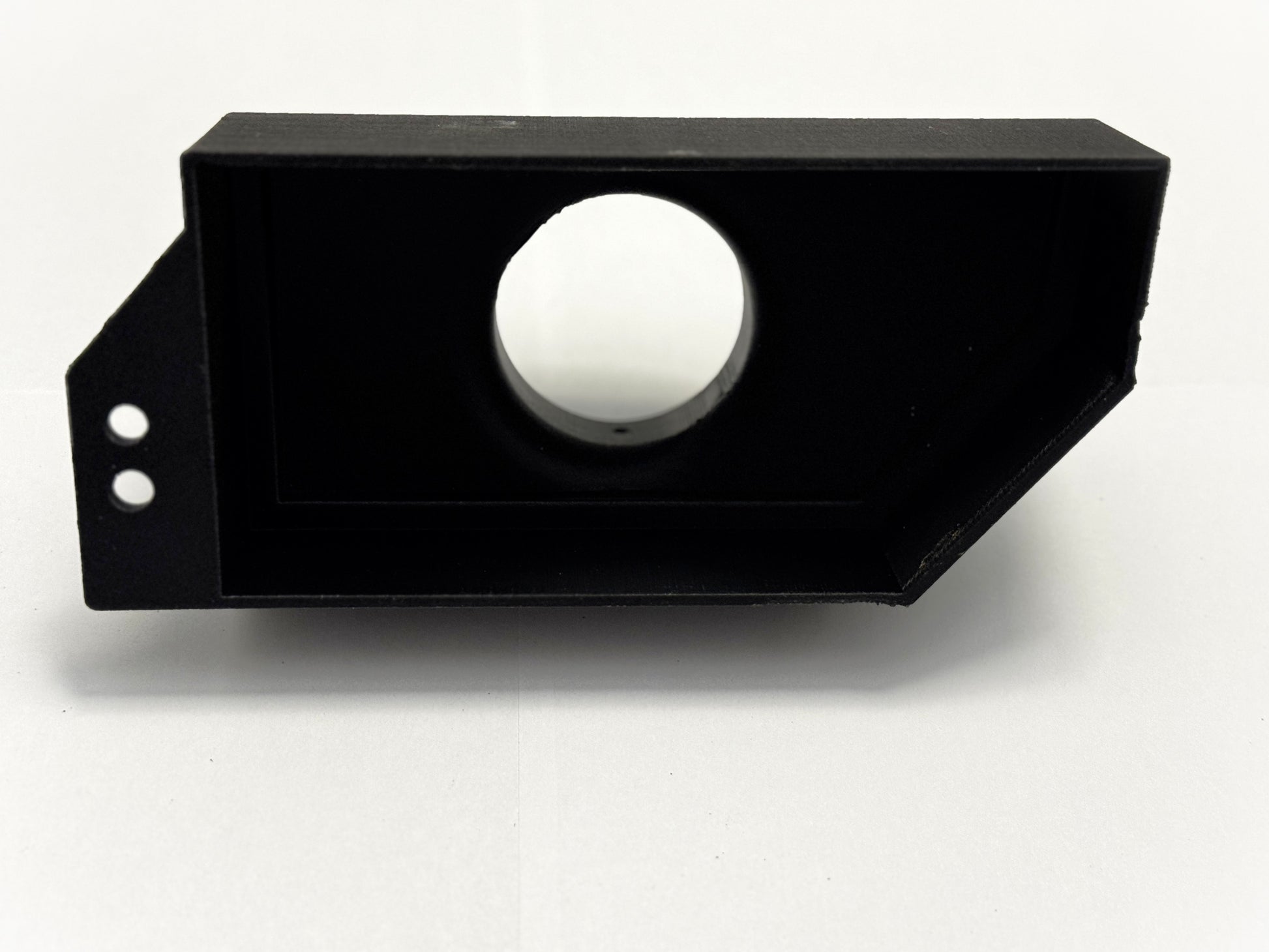

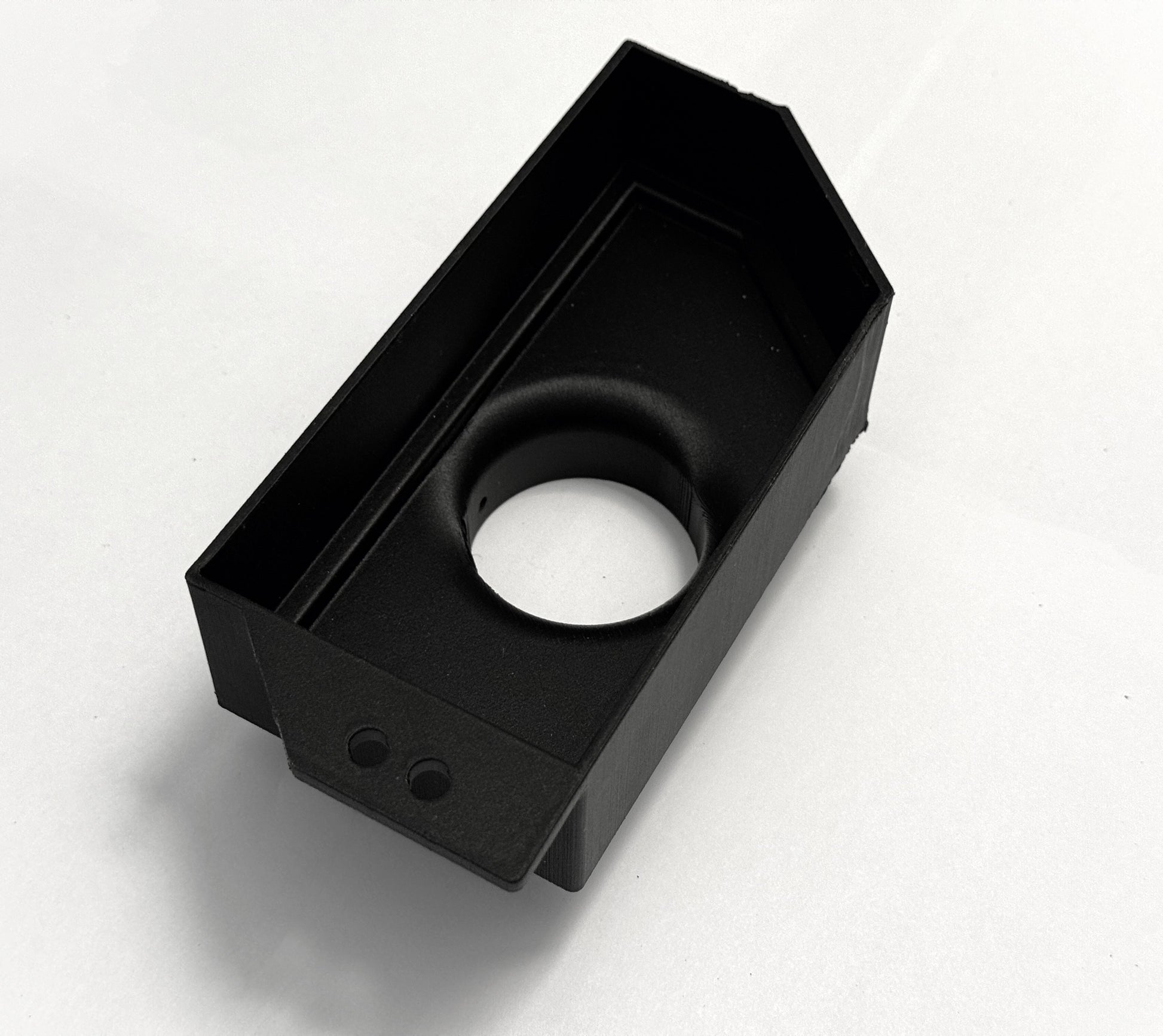

The hole inner diameter is 1.8in. It is a perfect fit for 2.5in tubing, to fit around the outer portion of the input port. Two holes are located on the sides of the output port to allow two screws to be installed to hold the tubing in place.

*Note, all orders are fulfilled in the order they are received. Due to the size and complexity of these components, it can take up to 3-5 days to produce the parts for shipping.*
