2017-22 F Series Defrost Vent Adapter *OUTPUT* For 1992-97 F series Interior Swap

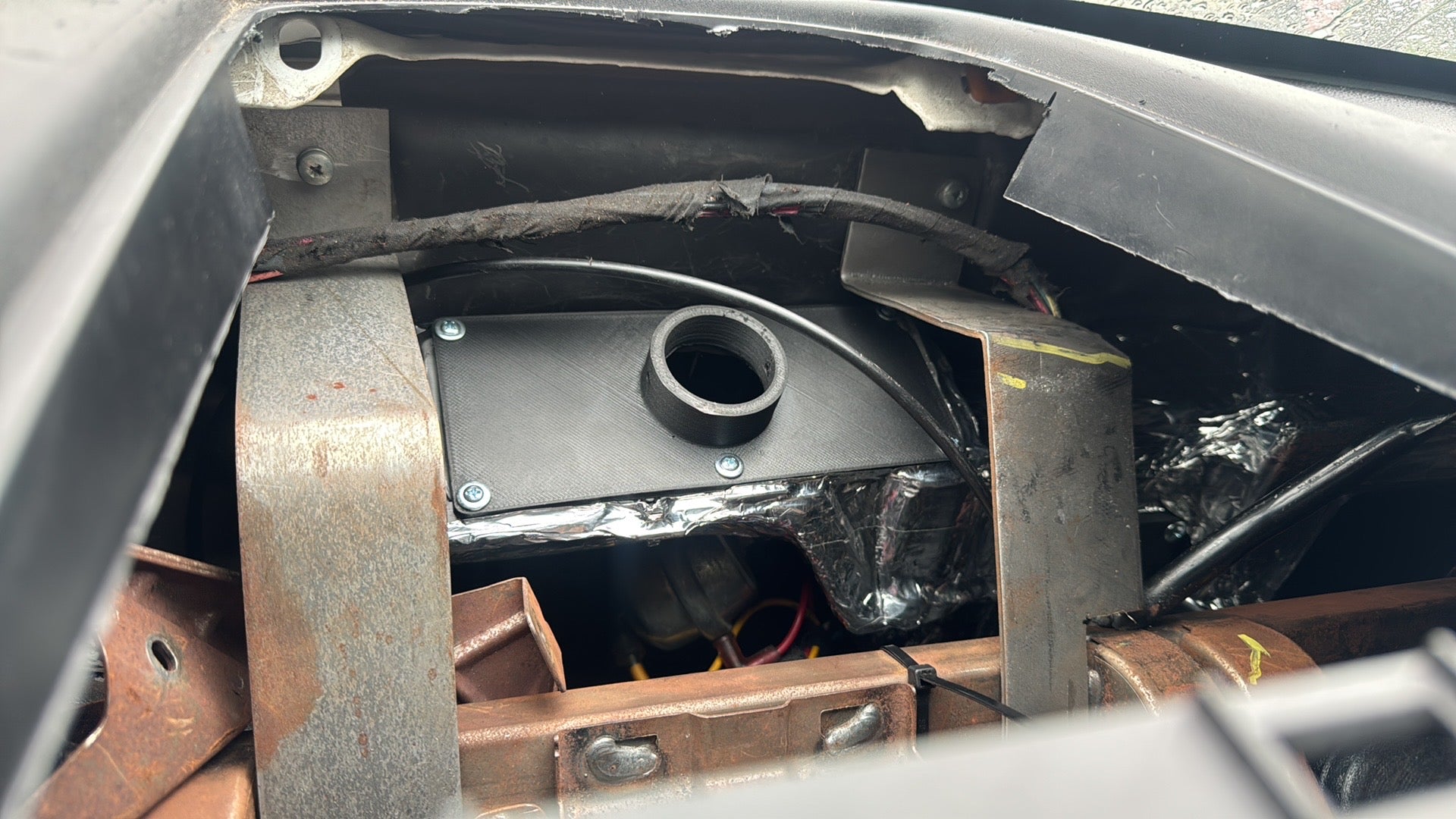

This component is specifically designed to replace the defrost vent output port that is located on the climate control system for the 9th Generation F series Trucks. It replaces the part of the factory ac system, and allows the user to attach the air duct to the center speaker location on the newer dashboard. The component is made of PET-CF, to ensure its reliability and high temperature resistance, perfectly suited for an AC system.

This does not include any mounting hardware, but any self tapping screw should suffice that is at least 1/2 in length.

Note: using very long hardware would not allow the blend door to close properly. Please take this in consideration.

This also does NOT include the gasket shown in the photos either. It was designed to reuse the OEM gasket. The hole inner diameter is 1.8in. It is a perfect fit for 2.5in tubing to fit around the outer portion of the ducts. Two holes are located on the sides of the output port to allow two screws to be installed to hold the tubing in place. If you would like, a hose clamp also would work.

*Note, all orders are fulfilled in the order they are received. Due to the size and complexity of these components, it can take up to 3-5 days to produce the parts for shipping.*
