***Please make sure your email is provided in the order so I can update you as parts arrive in my possession. I only have 1 on hand for testing***
***All orders placed within the 1st 48 hours will be part of the first Shipment. Mustang Timing Cover Variants Will have additional delay due to timing cover differences.***
Please email with questions/concerns.
If you were ever looking to save some money and wanted an alternative option for belt driven Power steering, no need to look any further!

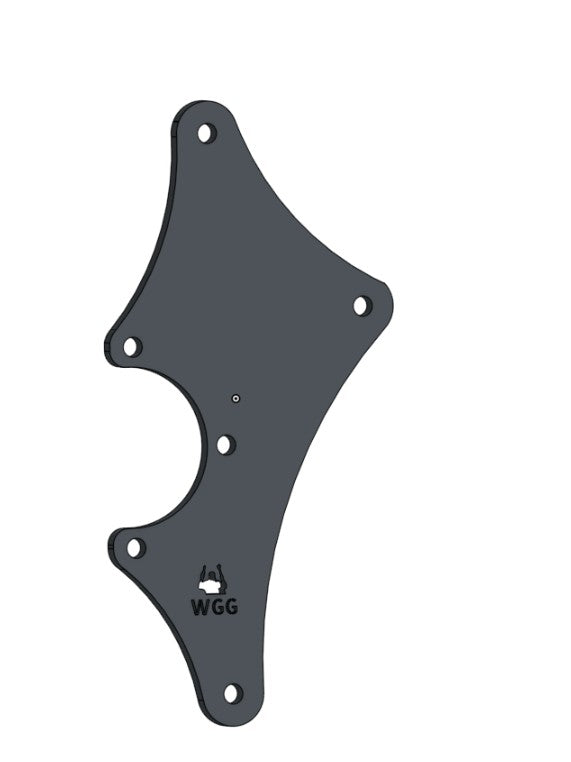

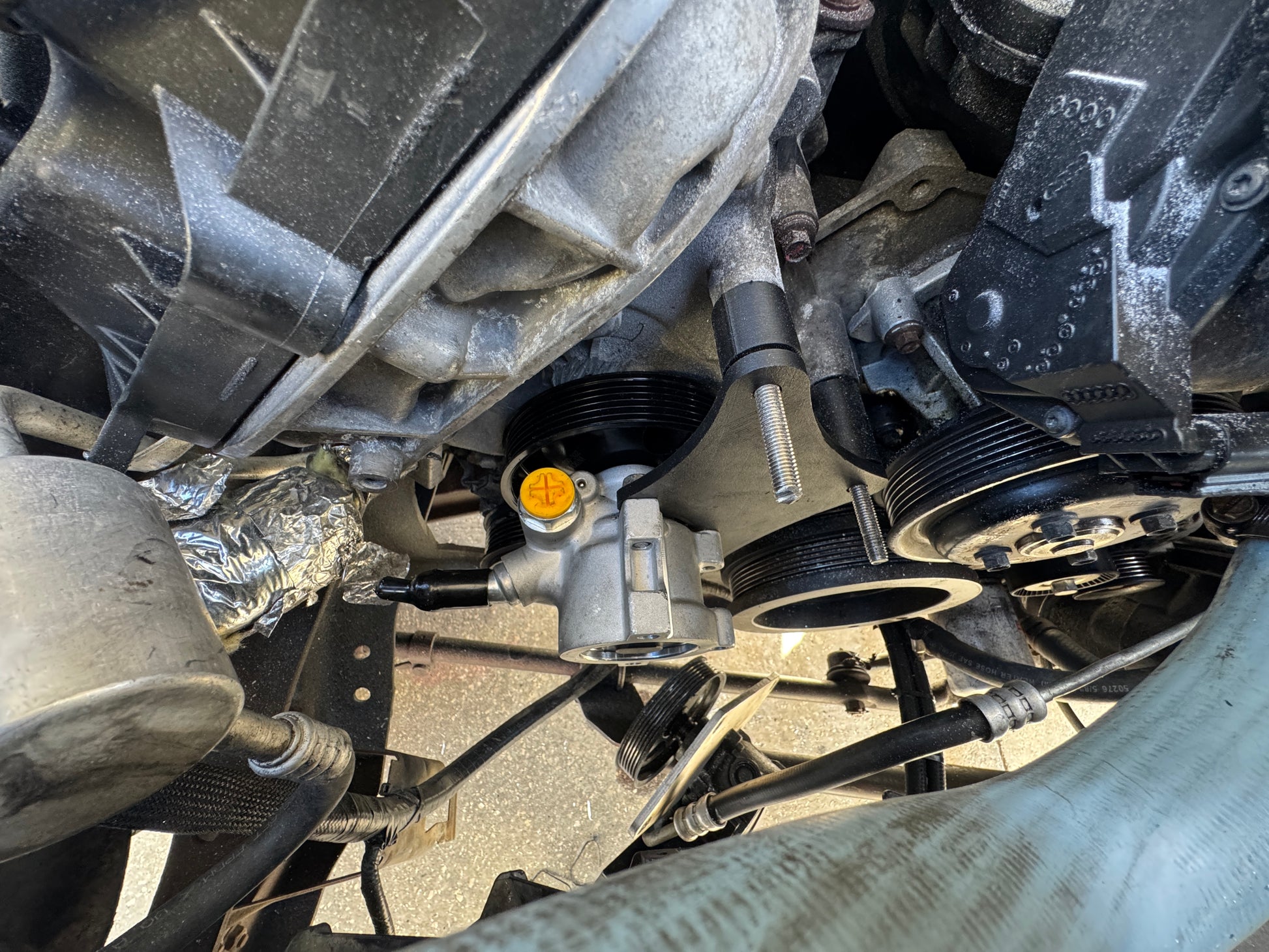

this bracket is designed to fit both the F150 Timing Cover, as well as the Mustang Timing Cover. The spacers will be provided depending on the drop down option you choose.
This bracket is designed so that you as the end user can shop around for the power steering pump components and save a significant amount of money. You should easily be able to purchase everything for your power steering pump setup including the belt for less then 300 dollars.
What’s included:
Power Steering Pump Bracket
Power Steering Pump Bracket Spacers
What Isn’t included:
Power Steering Pump
Power Steering Pulley
Power Steering Hoses
Power Steering reservoir
Mounting Hardware
Stretch Belt
What is needed:

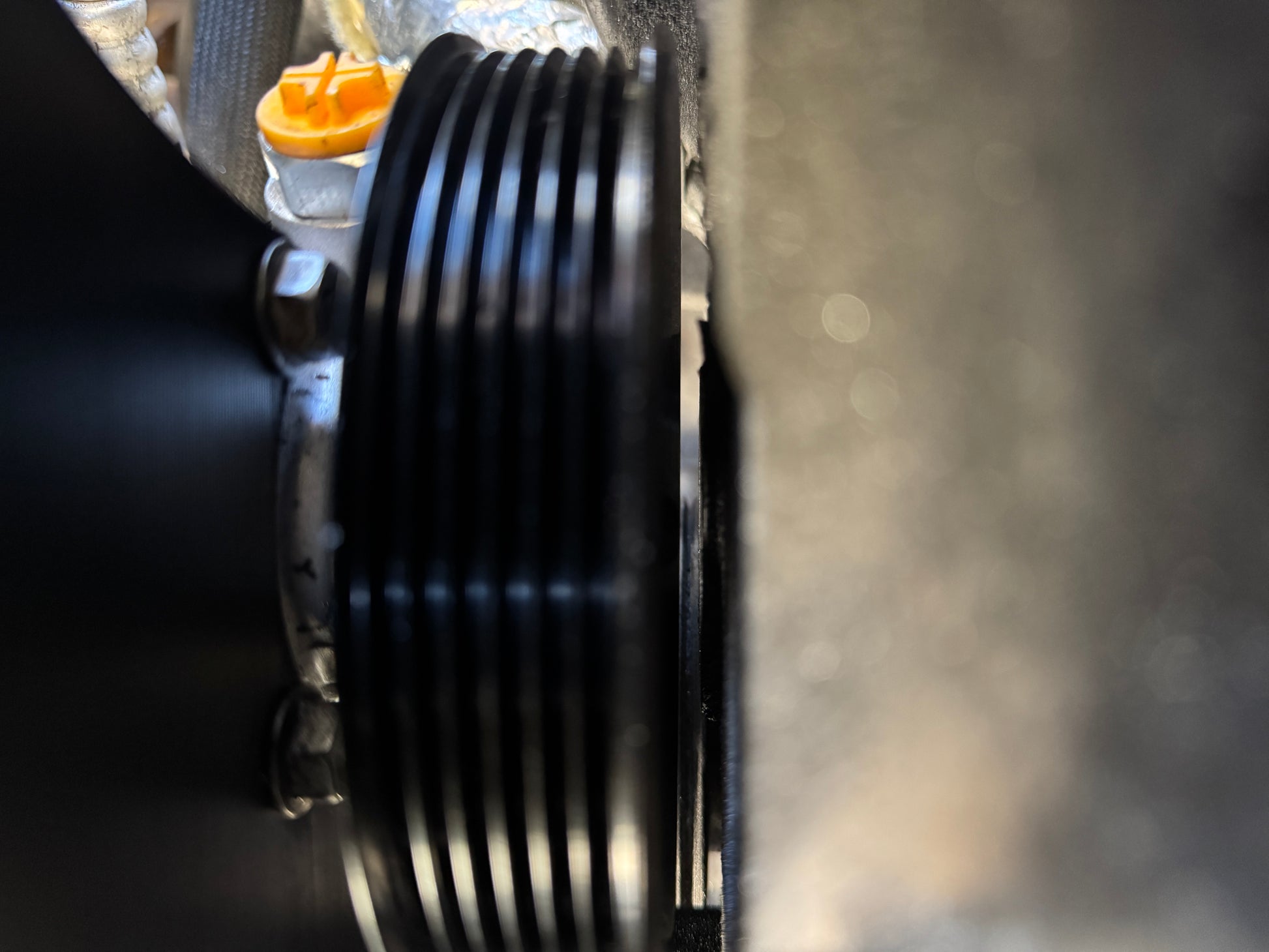

Dorman 300-302 Power Steering Pulley
C4 Corvette Power Steering Pump (before install, please make sure the pump pushes fluid in a COUNTER CLOCKWISE ROTATION)
Shaft Diameter SHOULD be 16.8mm or .662in.
Stretch Belt (Gates K040389SF is what I used. I have a FS-10 Style A/C Compressor)
M8x1.25 Drill & Tap
3 M8x1.25 Nuts
M8x1.25 Threaded Rod
(Amazon has both for a great price)
Power Steering Reservoir
(any container should work. Make sure to mount higher then pump.)
Power Steering High Pressure Hoses (Note if you have a 1980-1996 F Series Truck, purchase a high pressure hose for a 96 E350/7.5 as it is a direct swap)
Power Steering Cooler(optional).
You can Absolutely source your power Steering Pump used, as this is totally budget oriented.
If you have any questions please email.
